OVERVIEW
OVERVIEW OF THE CONSTRUCTION
The carriage house doors are made of steel and have a four-layer design.
2″ Intellicore® polyurethane, 2″ polystyrene, or 1-3/8″ polystyrene insulation are available as insulation alternatives. These garage doors have R-values ranging from 6.5 to 18.4.
These doors’ steel skins are protected by a multilayer coating method that comprises a hot-dipped galvanised layer as well as a baked-on primer and top coat.
For high wind load applications, WINDCODE® door reinforcing is provided.
OVERVIEW OF THE DESIGN

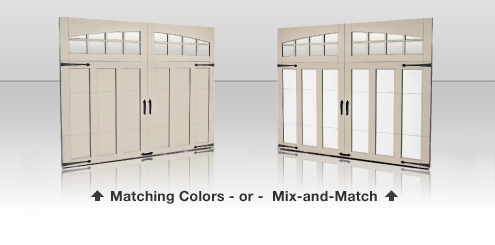

There are four factory finish paint and overlay colours available. To obtain the desired effect, blend the overlay and base colours.
Clear, seeded, rain, obscure, frosted, and insulated glass are just a few of the options.
Clip-in window grilles with a bevelled edge are removable for easy cleaning.
Spade lift handles and step plates are included. There are a variety of decorative hardware alternatives available.
ASSURANCE FOR THE ENVIORNMENT
Clopay doors are in accordance with all applicable environmental laws and regulations. Clopay doors are free of HFCs. Clopay doors meet the following requirements:
SB 1013 (California)
HB 1112 — Hydrofluorocarbon Greenhouse Gas Emissions in Washington
Ozone-depleting chemicals and halocarbon alternatives rules in Canada have been amended.
Greenhouse Gas Bill (A-5583/S-3919) in New Jersey
LIFTMASTER® ELITE SERIES™
DOOR DESIGNS
SERIES 1
SERIES 2
SERIES 3
DESIGN 31
DESIGN 32
DESIGN 33
DESIGN 34
DESIGN 35
DESIGN 36
SERIES 4
DESIGN 41
DESIGN 42
DESIGN 43
TOP SECTIONS
SOLID TOP SECTIONS
ARCH1
WINDOW DESIGNS
ARCH1
ARCH3
ARCH4
ARCH13
ARCH14
SQ23
SQ24
DOUBLE TOP SECTIONS
SPECIALTY GLASS OPTIONS
COLORS
HARDWARE DESIGNS
HANDLES
HINGES
PLATES
Overlay Composite
Steel
2″ Intellicore® polyurethane, 2″ polystyrene, or 1-3/8″ polystyrene insulation with thermal break R-values ranging between 6.5 and 18.4)
Steel
Protect against the elements with a replaceable vinyl bottom weather seal in a rust-free aluminium retainer.
The grilles can be easily removed for cleaning.
Safe-T-Bracket® – Protects against serious injury if the bottom bracket is removed while the garage door is closed and under tension.
Safe-T Bracket®
In this case, the door is displayed in Standard White.
Air infiltration requirements of 0.40 cfm/ft2 or fewer are met by this product, according to the 2015 IECC (IECC, Section C402.5.2)
